Mechanical |

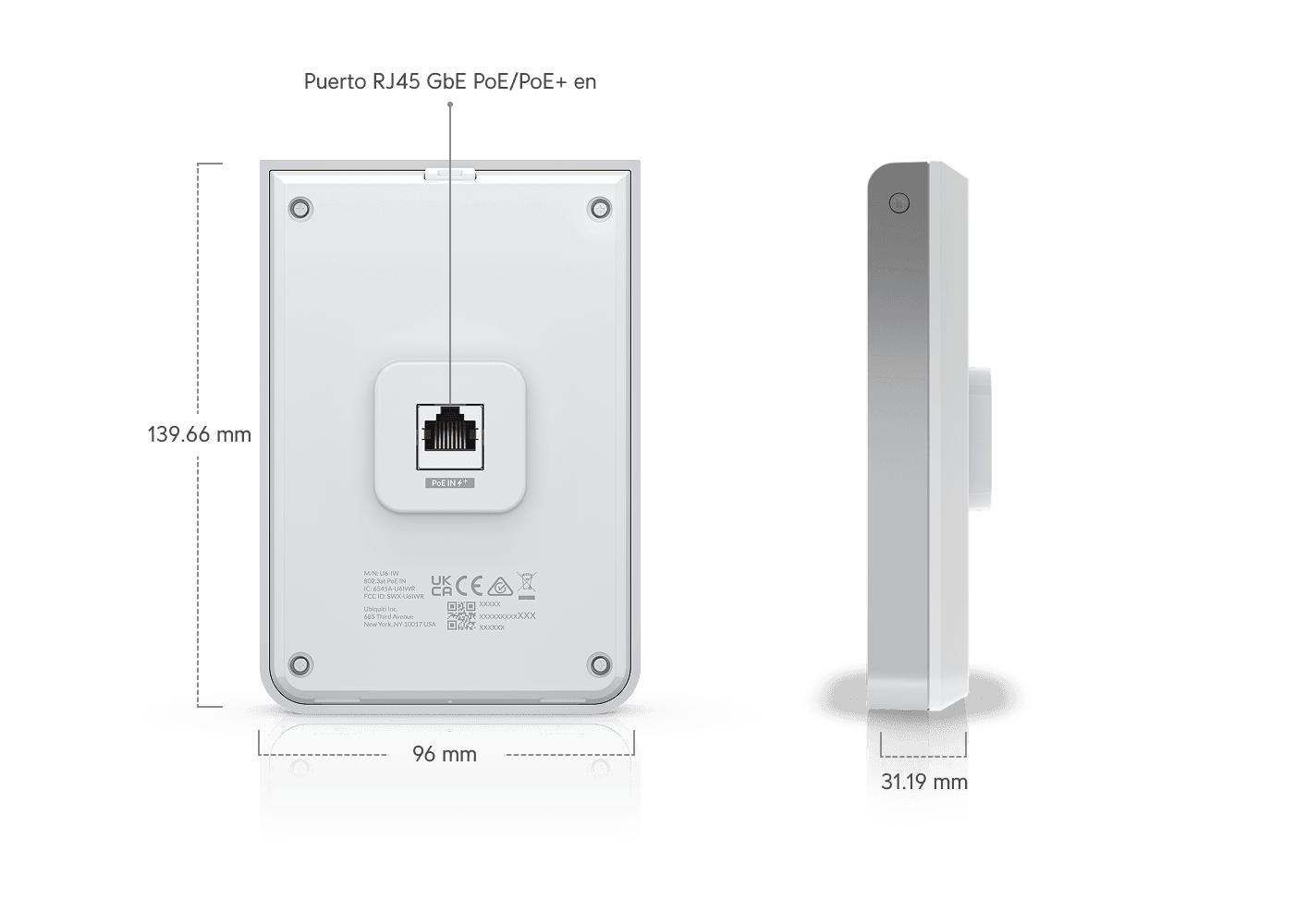

Dimensions | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28") |
Weight | 460 g (1.01 lb) |
Enclosure materials | Plastic, aluminum |
Mount material | Aluminum |
Hardware |

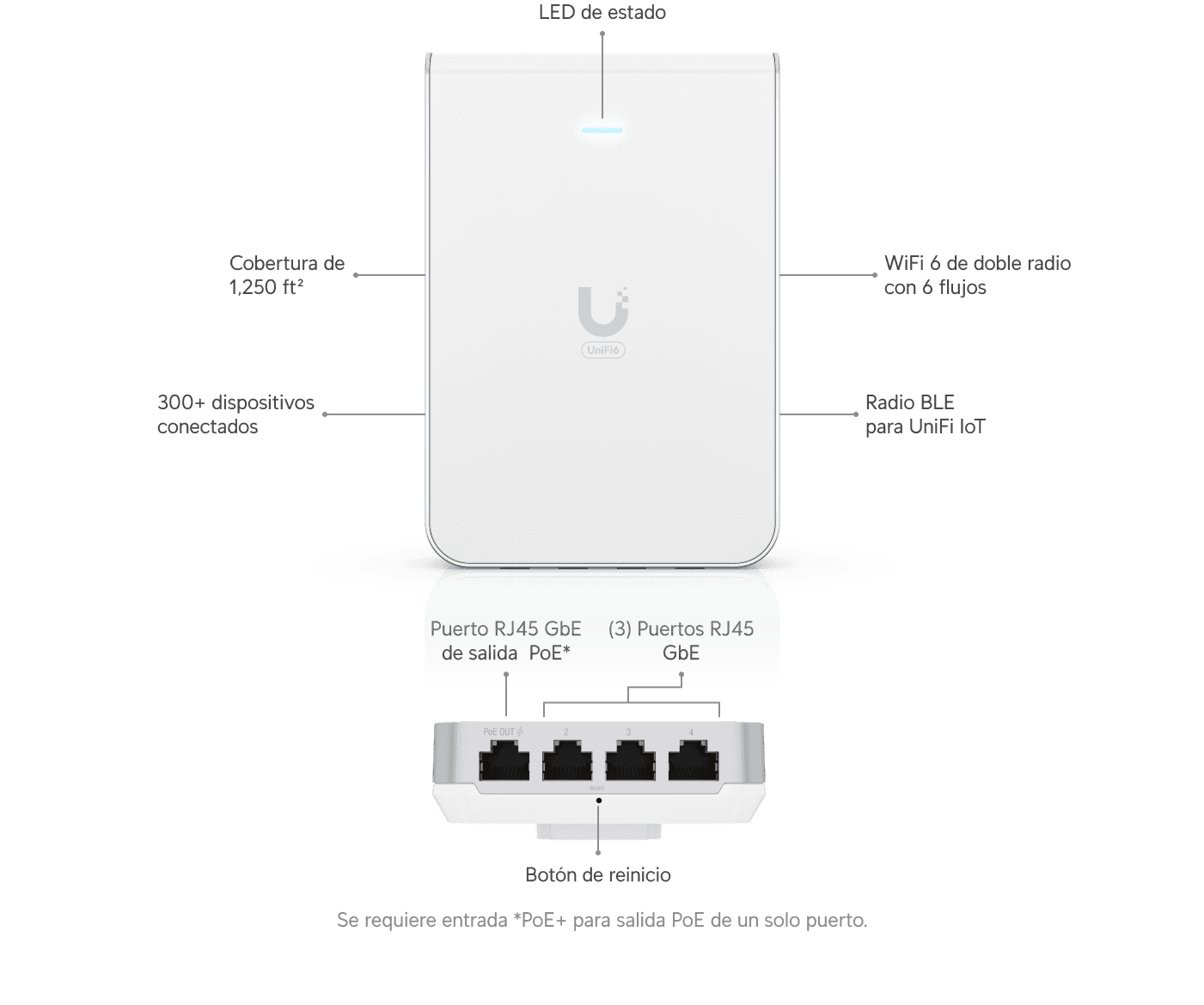

Networking interface | (1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports |
Management interface | Ethernet Bluetooth |
PoE interface | (1) PoE in (PoE output not used)
(1) PoE out (Requires a PoE+ switch) |
Power method | PoE |
Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Optional) |
Max. power consumption | Excluding PoE output: 13.5W |
Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
Voltage range PoE mode | 44—57V DC |
Max. TX power 2.4 GHz 5 GHz | 22 dBm 26 dBm |
MIMO 2.4 GHz 5 GHz | 2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
Throughput rate 2.4 GHz 5 GHz | 573.5 Mbps 4.8 Gbps |
Antenna gain 2.4 GHz 5 GHz | 5 dBi 5.9 dBi |
LED | White/blue |
Button | Factory reset |
Operating temperature | -30 to 60° C (-22 to 140° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Software |
WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Concurrent clients | 300+ |
Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
Supported Data Rates |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Application Requirements |
UniFi Network | Version 6.4.52 and later |
