Mechanical |

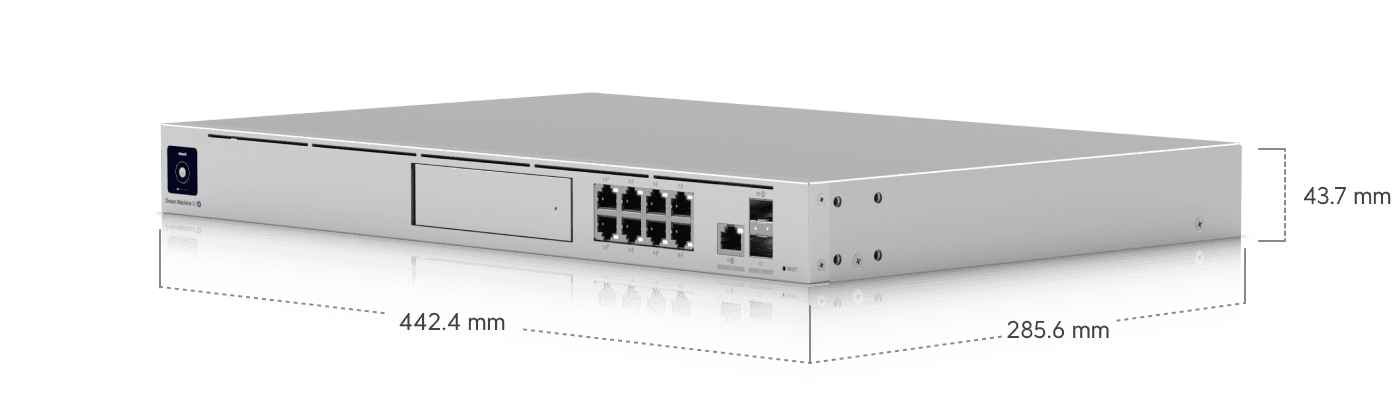

Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
Weight | 4.95 kg (10.9 lb) |
Enclosure materials | Aluminium CNC, SGCC steel |
Mount material | SGCC steel |
Hardware |
Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
System memory | 4 GB DDR4 |
On-board storage | 16 GB eMMC Integrated 128 GB SSD |
Management interface | Ethernet Bluetooth |
Networking interface | (8) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port |
SFP+ interface | (1) LAN: 10G SFP+ (1) WAN: 10G SFP+ |
PoE interface | (6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-) |
IDS/IPS throughput | 3.5 Gbps*
*Measured with iPerf3 |
Power method | (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
Power supply | AC/DC, internal, 240W |
Supported voltage range | 100—240V AC |
Max. power consumption | 50W (Excluding PoE output) |
Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W |
Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
LCM display | (1) 1.3" touchscreen |
Button | Factory reset |
Operating temperature | -10 to 40° C (14 to 104° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Gateway Features |
Performance | Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting |
Next-generation security | Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and UID VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
|
LEDs |
Ethernet | White: link/activity |
SFP+ | White: link/activity |
HDD | White: disk activity Amber: disk error |
RPS | Blue: ready |
